GridMRO.com-Leading global industrial mall.| 4G/5G aggregation industrial router

Product Details

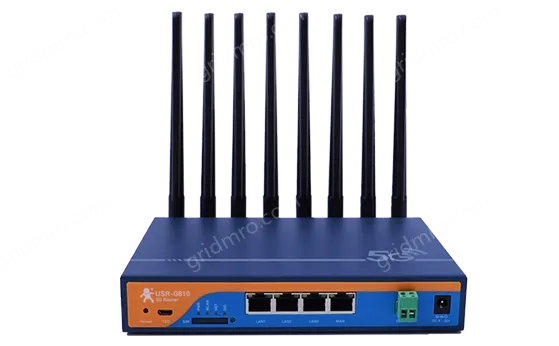

Model: USR-G810
SKU: 10000124825801
Brand: PUSR
Size: 200.00000000 mm, 139.00000000 mm, 35.00000000 mm
Weight: 0.5g

Specifications

Port TypeRJ45
Port Number2
Transfer Rate10\/100Mbps
Network Protocol SupportTCP\/IP
Memory128MB
Storage16MB
Power Specifications9-36VDC

Description Reviews

USR-G810-33 is a dual 4/5G aggregation industrial CPE launched in cooperation with Alibaba Cloud, using high-performance embedded dual-core CPU, working frequency up to 880MHz, equipped with dual Qualcomm 4G modules, and has rich software and hardware functions: multi-link aggregation services, load balancing, 2.4GHz and 5.8GHz dual-band WiFi, Gigabit LAN/WAN ports, 5 kinds of VPN encrypted transmission and free cloud management platform. It can especially highlight its advantages of uninterrupted network in weak network environments and high-speed mobile scenarios, providing a stable and reliable network networking solution for your data transmission.

project		USR-G810-33 (Dual 4G Converged Version)		USR-G810 (Single 5G Version)
Cellular standards	Wireless module	Dual 4G Qualcomm Solution Module		Single 5G Qualcomm module
	Standard frequency bands	LTE:B1/B3/B5/B8/B38/B39/B40/B41 TD-SCDMA:B34/B39 WCDMA:B1/B8 CDMA/GSM:900/1800MHz		5G NR:n1/n28/n41/n77/n78/n79 LTE:B1/B2/B3/B5/B7/B8/B34/B39/B40/B41 WCDMA：B1/B2/B5/B8
	Theoretical rate	LTE :150Mbps（DL）/50Mbps（UL） WCDMA :42Mbps（DL）/5.76Mbps（UL）		5G NR:2Gbps(DL)/900Mbps（UL） LTE CAT12：600Mbps(DL)/90.4Mbps(UL) HSPA+: 42Mbps(DL)/5.76Mbps（UL）
WIFI standard	Wireless standards	IEEE802.11b/g/n/ac is supported
	Theoretical bandwidth	2.4G: Maximum speed 300Mbps 5.8G: The maximum speed is 867Mbps
	Type of Certification	WPA-PSK、WPA2-PSK、WPA3-PSK
	Secure encryption	Support TKIP and AES encryption algorithms
	Distance covered	Outdoor open/unobstructed, covering a radius of up to 200 meters Indoor office environment/obstacles with a coverage radius of up to 40 meters (subject to environmental influences)
Physical characteristics	Operating temperature	-20℃～ +70℃
	Storage temperature	-40℃～+125℃
	Operating humidity	5%~95%RH (no condensation)
	Store humidity	1%~95%RH (no condensation)
	Supply voltage	DC 9-36V
	adapter	12V/3A	12V/2A
	Average power consumption	12V@260mA	12V@524mA
	size	200.0140.035.0mm(LWH, excluding rail mounting ears, antenna base and mounting parts)
	Installation:	Rail-mounted, wall-mounted, and horizontally tabletop mounted
	EMC rating	Level 3
Hardware interfaces	WAN port	1 x 10/100/1000M Ethernet port, adaptive MDI/MDIX, with 1.5KV electromagnetic isolation protection
	LAN port	3 x 10/100/1000M Ethernet ports, self-adaptive MDI/MDIX, with 1.5KV electromagnetic isolation protection
	SIM card interface	2 * (3 V/1.8 V) standard self-popping SIM card slot (dual SIM can be customized with built-in eSIM)
	Antenna interface	Cellular: 2 standard SMA antenna interfaces (outer spiral inner hole) WiFi: 2 standard SMA antenna ports (outer spiral and inner hole)
	Light	PWR、WLAN、NET1、NET2
	Power connector	DC power supply: cartridge type 5.5*2.1mm round socket or industrial terminal power supply, with reverse polarity protection
	Reload button	Press and hold for 5-15s to release and restore to the factory
	TBD interface	Debug interfaces
	Grounding protection	Grounding screws
