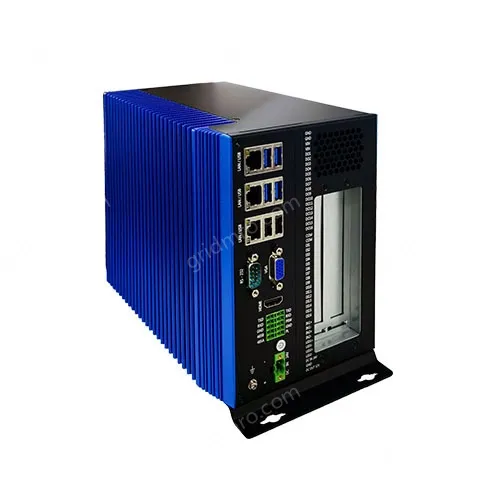

GridMRO.com-Leading global industrial mall.| Embedded IPC PCX-9268-INTEL-I3-6100-4GB+256GB

Product Details

Model: PCX-9268-INTEL-I3-6100-4GB+256GB
SKU: 10000144947501
Brand: kernal
Size: 138.00000000 mm, 238.00000000 mm, 194.66000000 mm
Weight: 4.3kg

Specifications

Processor ModelIntel Core i3-6100-
Core Number2cores
Frequency3.7GHz
Memory Capacity4GB
Storage Capacity256GB
USBUSB 3.0ports
Serial PortRS-232ports
Input Voltage100-240VAC
Output Voltage12VDC
Input Current2A
Output Current5A
Power60W
Operating Temperature0-40°C
Storage Temperature-20-70°C
Dimensions170x120x40mm
Expansion Slot TypePCIeslots

Description Reviews

1. Intel Kabylake/Skylake Core i3/i5/i7 FCLGA1151 series 6th/7th/8th/9th generation CPUs2. DDR4-2133/2400MHz SODIMM memory design, up to 32G3. 1*mSATA+1*SATA3.0 interface (2*SATA3.0 optional before leaving the factory)4. HDMI+VGA dual display mode, support 4K display5. 3*Intel I225-AT 10/100/1000M network ports, support Wake-on-LAN6. 4*USB3.0, 4*USB2.0 (2 of them built-in)7. 3*3 wires RS-232 (4*3 wires RS-232 optional before leaving the factory), 1*RS-4858. Optional functions: 16*DI, 16*DO, 8*light source power supply, 1*DC IN 24V 1*DC OUT 12V

PCX-9268A specifications
Core Features	Processor	Sky Lake architecture: G4400//I3-6100/I5-6400/I5-6500/I7-6700 optional
		Kaby Lake architecture: G4560/G3930/I3-7100/I5-7500 optional
		Coffee Lake architecture: I3-9100/I5-8500/I7-9700/I9-9900 optional
		Ice Lake architecture: I5-9600
	Memory	Single-channelDDR4 laptop memory slot, up to 32GB
	Operating system	Support Win10 64bit 21 2H version, Ubunt20 or above version system
I/O Interface	USBI/Ⅱ	4USB3.0,2USB2.0
	USBⅢ	1*Single-layer heightened USB2.0,can be connected to dongle
	USBⅢ	1*USB2.0pin
	StorageI	1SATA3.0 interface (22.5-inch SATA3.0 can be customized before leaving the factory), support 2.5-inch hard disk (128GB/256GB/500GB/1TB optional), and 3.5-inch hard disk can be customized
	StorageII	1*MINI PCIE slot,supportmSATA (capacity 64/128/256/480/512GB optional).
	LAN	3*Gigabit Ethernet port, using Intel I225V chip, support network wake-up
	Serial portI	33-wire RS-232 (4RS-232 can be customized before leaving the factory, but you need to purchase the corresponding wiring before you can use it)
	Serial portII	1*RS-485, green phoenix terminal
	Extended interfaces (Optional)	Model 1: PCX-9268-B1
		1PCIE X16 SLOT (PCIE X8 SIGNAL) + 1PCIE X4 SLOT (PCIE X2 SIGNAL) OPTIONAL
		Model 2:PCX-9268-B2
		1 x PCI SLOT + 1 x PCIEX16 SLOT (PCIEX8 SIGNAL)
Expand I/O Interfaces (This part is an optional function)	GPIO	16*DI, NPN/PNP mode input DC 6V-30V
	GPIO	16*DO, themaximumoutputcurrent ofeachchannelis500mA, and the output voltage DC is 9-30V (depending on the voltage of the power supply terminal).
	Light sourcecontrol	2Light source power supply, green phoenix terminal (can be expanded to 6 channels, maximum 8 light source power supply)
		The maximum current of a single light source is 1A, and the power consumption of a single channelis 24W. If 8 light sources are used at the same time, the maximum totalpower consumptionneeds to be calculated according to the actual situation
		1*DC IN 24V, when multiple light sources are used at the same time, it can provide external power supply for the light source, and the maximum current is 6A
		1*DC OUT 12V, can support a maximum of 2A current, theoretically can meet the power supply of 4 cameras with 5W power
Display Features	Display mode	1 * standard DB15 VGA interface, the maximum resolution is 1920*1080
Display Features	Display mode	1Standard HDMI interface, the maximum resolution is 40962304@24Hz
Watch Dogs	WDT	Support 256 levels (0~255), programmable
Electrical Characteristics	Operating humidity	5%~90% non-condensing(excluding electronic disks).
	Operating temperature	-20°C~60°C(excluding electronic disks).
	Storage temperature	-40°C~85°C(excluding electronic disk).
Structure	net weight	ABOUT 4.3KG
	Installation	Tabletop stand mounting
	Machine size(mm)	138238194.66mm(LWH)
